Lineer Lightning
50x75 mm linear lighting can be integrated into metal suspended ceilings, drywall, honeycomb, baffle, and similar ceiling systems. Its simple form harmonizes seamlessly with the ceiling plane, while the adjustable suspension height allows flexible use across different ceiling heights and functional requirements. It provides homogeneous light distribution and a strong design aesthetic in various indoor spaces such as offices, workspaces, meeting rooms, corridors, showrooms, retail stores, cafés, and restaurants.
LED Linear Lighting Features
- Extruded aluminium housing; lightweight and durable.
- The body design ensures efficient thermal management inside the luminaire, maximizing system efficiency and the lifespan of internal electronic components.
- Provides a reliable solution for electrical grounding.
- Can be produced in standard RAL colors and surface textures; custom RAL colors and finishes are available to match project identity.
- Available in lengths from 500 mm to 3000 mm, in 100 mm increments.
- Can be produced in all light color temperatures between 2000 K and 6000 K with 4000 K being the standard. Warm, neutral, or cool white options are available upon request.
- Equipped with high-efficiency LED modules with a power rating of 22 W/m, ensuring energy-savings, high lumen-per-meter and high lumen-per-watt output.
- Opal diffusor with built in reflector or prismatic diffuser options are available to optimize glare control and light distribution according to project requirements.
- Long-lasting and stable light performance is achieved using OSRAM / SAMSUNG / PHILIPS LED modules.
- Reliable, long-life, and flicker-free operation with OSRAM / PHILIPS / EAGLERISE drivers.
- 3-core (grounded) connection cable can be supplied in the desired length; standard cable length is 1 meter.
Optional Accessories
- Battery Backup Emergency Kit (30–180 minutes)
- DALI Dimming
- Motion Sensor (Radar)
Installation Option

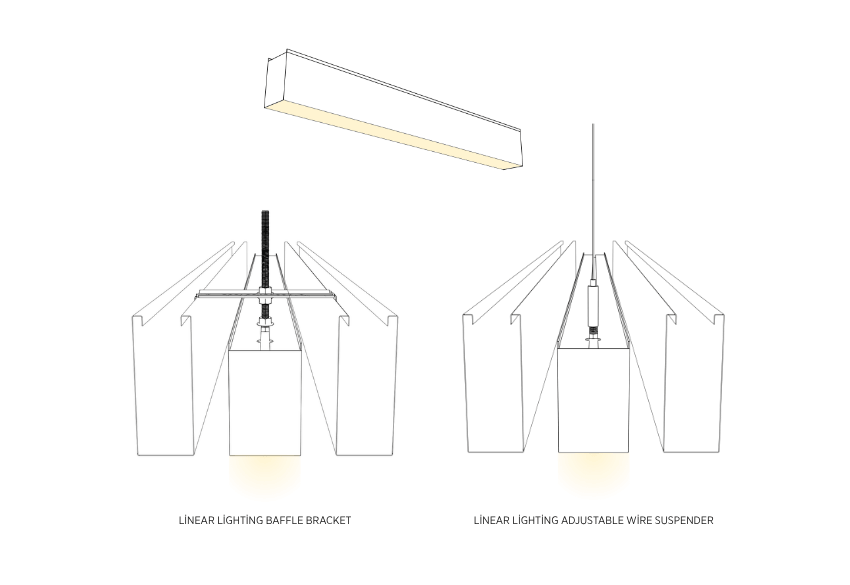

With our custom baffle bracket, the linear lighting is integrated directly in between the baffles without the need for any additional suspension elements.
- Reduces installation steps and shortens on-site labor time & costs.
- Simplifies measurement and alignment processes.
- Provides a cleaner and more integrated appearance.
